3-Tier End-Loading Mortuary Rack is cataloged by U.S. Pathology Equipment for pathology, anatomy, morgue, mortuary, forensic, veterinary, research and institutional facility projects.
The 3 Tier End Loading Mortuary Rack is the OSHA-compliant high-clearance rack in the American Mortuary Equipment line. Designed for funeral homes, hospital morgues, coroner offices, crematories, and disaster-response staging that need bariatric-capable first-tier clearance with efficient upper-tier density.
The 3-tier end-loading configuration is the right rack when first-tier bariatric clearance matters more than maximum body density. For higher-density side-loading workflow, see the 4 Tier Side-Loading Mortuary Rack. For the full racking and lift catalog, see racks and lifts and all-access mortuary racking.
Background on configuration tradeoffs: four rack types for a walk-in mortuary cooler.
| Capacity | 3 bodies (end-loading) |
|---|---|
| Width | 69″ |
| Depth | 31″ |
| Height (with casters) | 64.5″ |
| First tier load height | 21″ — bariatric and oversized capable |
| Upper tier load heights | 12″ |
| Steel | 10-gauge American structural steel |
| Casters | 5″ swivel with locking brakes |
| Finish | Powder coat standard; stainless and custom finishes available |
| Assembly | Stack-together, ships unassembled, 2-person setup |
| Clearance required | 70″ vertical × 34″ horizontal |
| Warranty | 15-year structural steel frame — see Warranty Policy (WR-1.0) |
| Country of origin | United States — Johnson City, Tennessee |
| Manufacturer | American Mortuary Equipment |
10-gauge structural steel is roughly 60% thicker than the 14-gauge frames that dominate imported mortuary racks and roughly twice the thickness of 16-gauge. For a rack that’s being loaded and unloaded daily with case weights ranging from 150 to 600+ lb, that’s the difference between a rack that holds its geometry over a decade and one that develops tier sag inside two years.
The 3 Tier End Loading Rack is sized for end-loading workflow in any AMC walk-in mortuary cooler at the 8×10 footprint or larger. For larger walk-ins with parallel racking, see the 10×10, 10×16, and 10×20. For the full walk-in line, see the walk-in mortuary cooler collection. Bariatric-rated walk-ins are at bariatric mortuary coolers with deeper detail in the bariatric buyer’s guide.

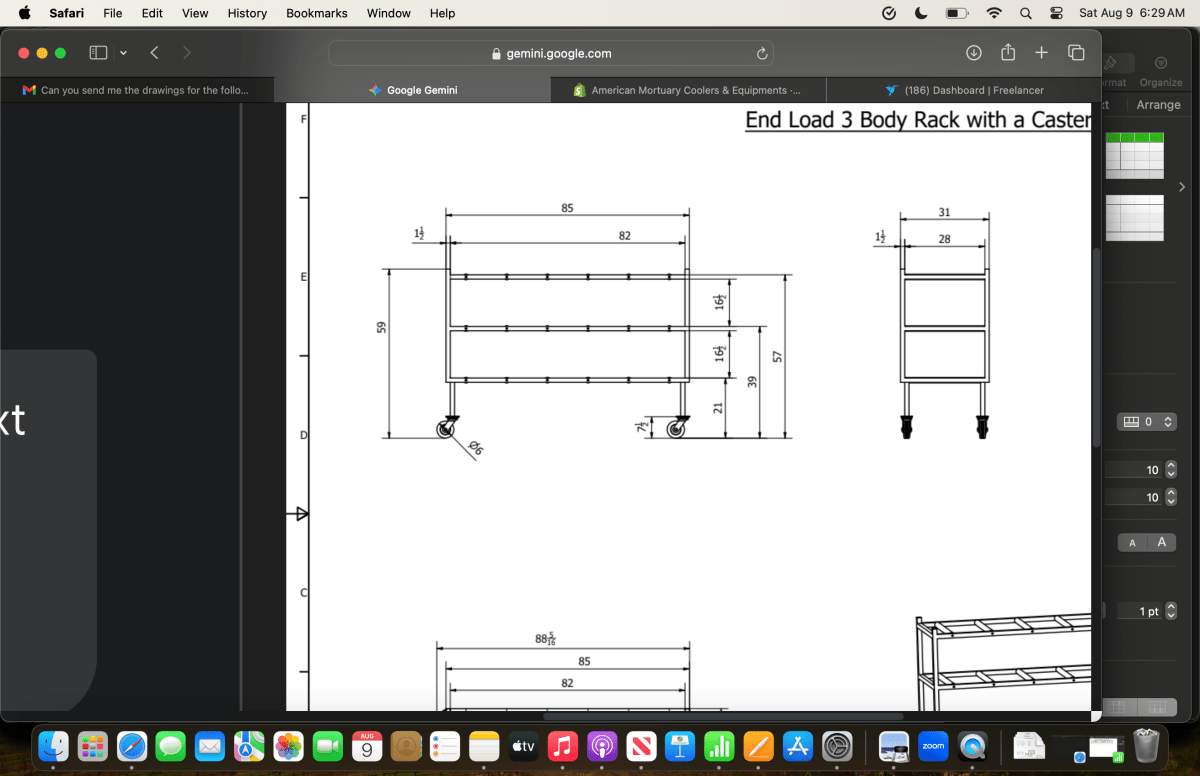

OSHA-compliant ergonomic handling. A+ Rated by the Better Business Bureau. Documentation packages for AHJ review ship with every quote — spec sheet, structural certifications, clearance drawings. See county morgue requirements and state body-storage code.
Multi-rack bundles, cooler-and-rack combos, and lift-and-rack packages are quoted directly. For combined builds, browse the full equipment line and factory-direct catalog. Custom rack builds and finishes available on request through the catalog request.
Starts at $1,399.00 factory direct.
Most orders ship within 2 business days. Same-day pickup available in Johnson City, Tennessee (sales tax applies unless exempt). See delivery times by region.
Regional desks: Southeast · Midwest · Northeast · Southwest · Rocky Mountain · Pacific · Canada.
Three. End-loading design, with the 21″ first tier sized for bariatric and oversized cases.
The first tier carries a 21″ load height for bariatric and oversized clearance. Upper tiers run 12″ for efficient stacking.
10-gauge American structural steel. Roughly 60% thicker than 14-gauge import racks.
No. Stack-together unassembled to reduce freight cost. Two-person setup, no specialty tools.
70″ vertical and 34″ horizontal.
15-year structural steel frame warranty — full terms in the Warranty Policy (WR-1.0).
Yes. Rack, cooler, and lift packages are quoted directly through the catalog request.
Johnson City, Tennessee. American Mortuary Equipment, family-owned American manufacturer since 2009, A+ Rated by the Better Business Bureau.
Direct procurement: 1-888-792-9315 · po@mymortuarycooler.com · request catalog · dealer inquiries
For facility packages, bid schedules, quantity pricing, freight coordination, submittals or option verification, add this item to an RFQ or contact U.S. Pathology Equipment before ordering. Confirm dimensions, utilities, accessories, delivery access and installation responsibility for your project.
Delivery methods, charges and estimated timing are confirmed for the selected equipment and destination. Inspect freight before installation and promptly document visible or concealed damage. Liftgate, limited-access, inside-delivery and other services must be included in the written order scope.
Current manufacturer documentation and the written order govern product coverage. Keep equipment uninstalled, unenergized, complete and in its original packaging while any return request is reviewed. Authorization is required before a return is shipped.
