20x20 Walk-In Mortuary Cooler

01 Overview & at a glance

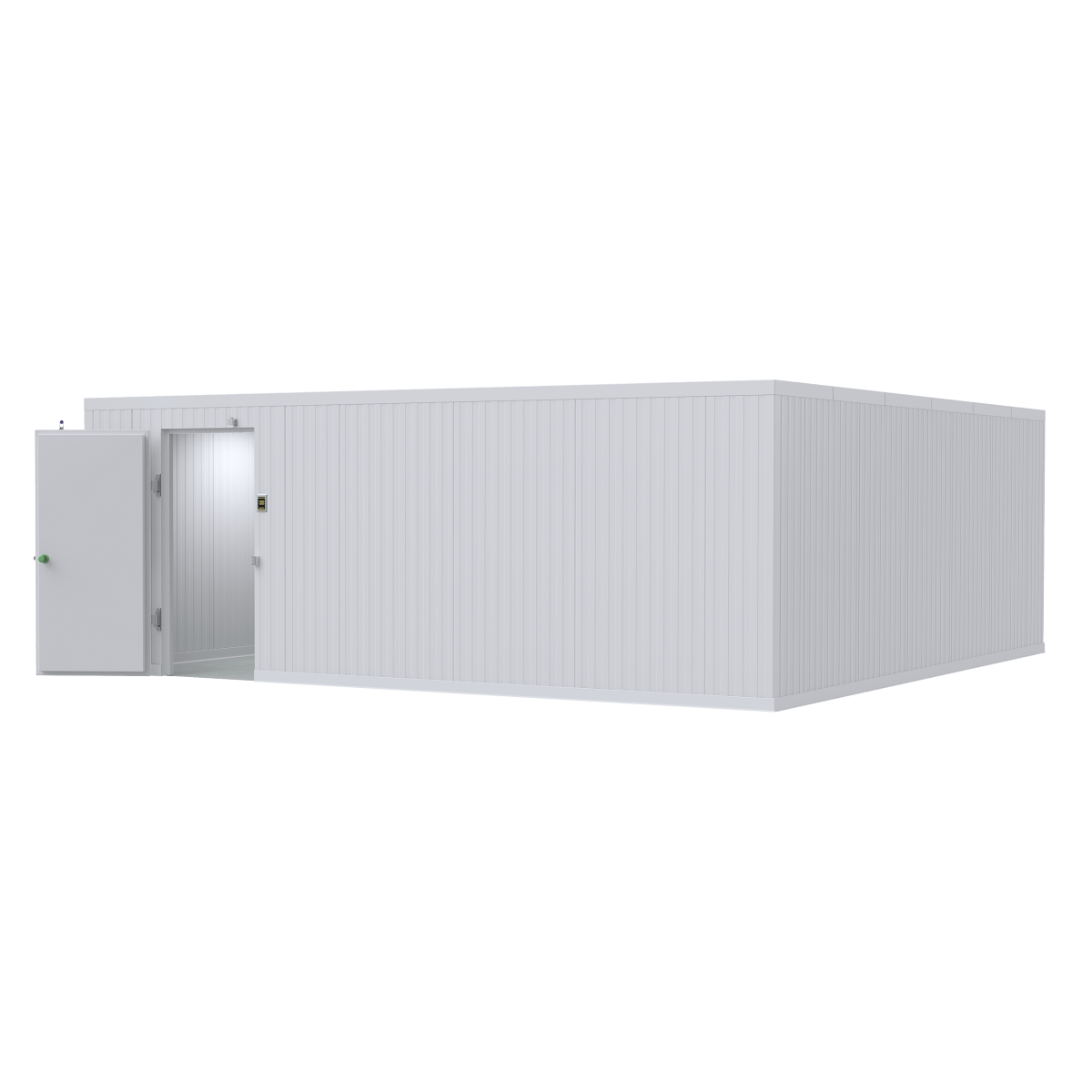

The 20×20 is a walk-in cadaver cooler in the AMC line — 400 sq ft of insulated cold storage built in Johnson City, Tennessee.

NSFUL ListedASTM E84 Class AMade in USABBB A+

Family-owned American manufacturer, 7,500+ customers since 2009. Direct procurement: 1-888-792-9315 · po@mymortuarycooler.com.

02 Full specifications

03 Electrical & compressor

The 20×20 runs its refrigeration on a 208–230V, single-phase dedicated circuit, with a required second low-voltage line for the internal evaporator-fan circuit, and a 115V lighting circuit if the LED package is added. A stamped electrical schedule ships with every quote so your electrician can size circuits and disconnects before delivery.

04 Sizing & capacity

400 sq ft delivers 30-to-50-body holding with 4 Tier Side-Loading Mortuary Racks. Plan rack banks from the interior dimensions — 19′4″ of clear width runs parallel rack rows with a full center aisle.

Step the size to your caseload

• Browse the full ladder: Walk-In Mortuary Coolers

Methodology: size guide · capacity planning · 2026 cost guide.

05 Door configuration & handing

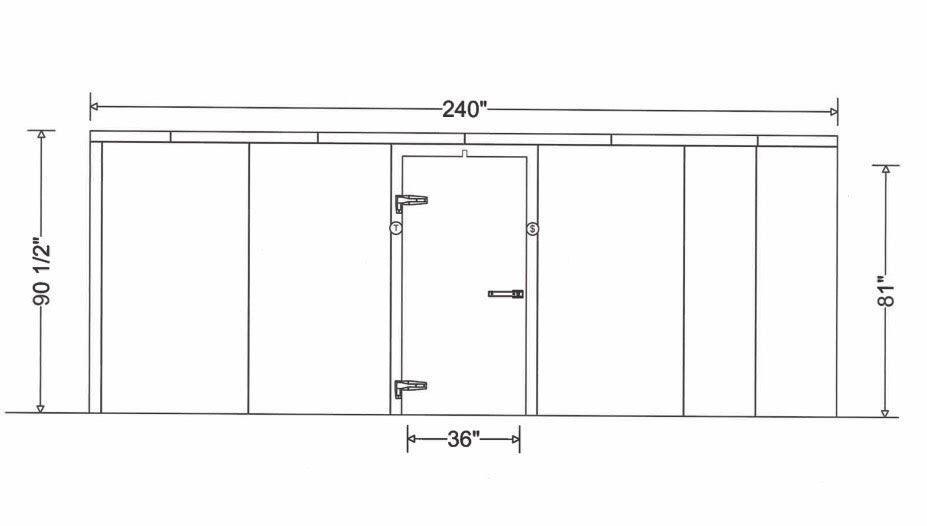

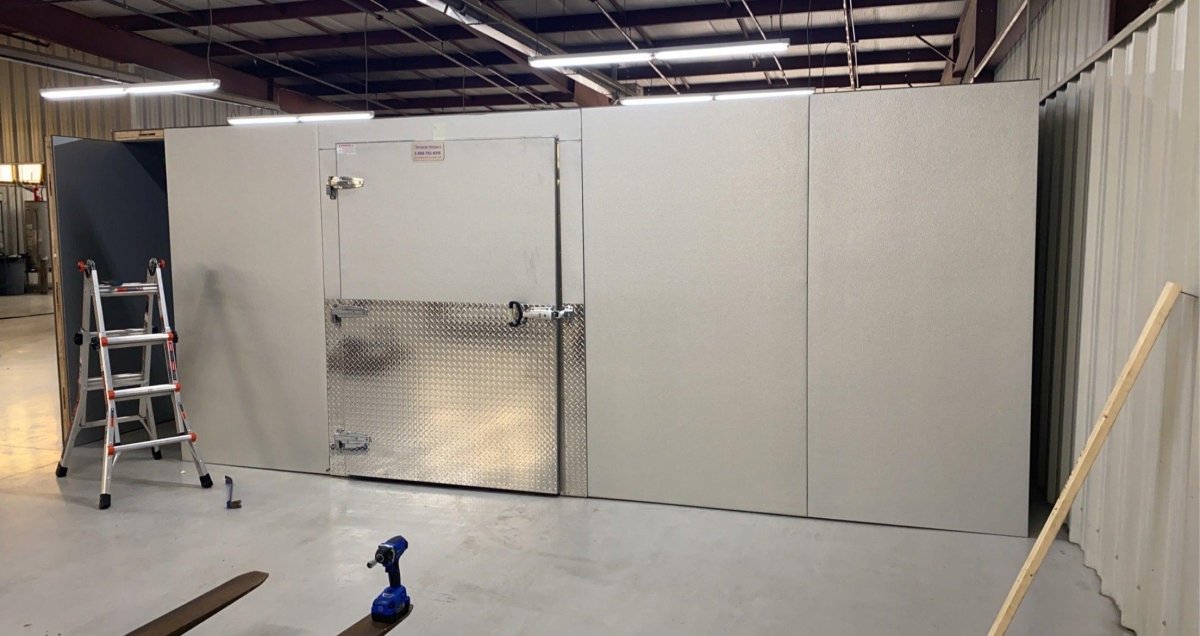

Choose from four precise placements — corner or off-center, on the front wall or the side wall. Your Door Location selection in the Build-It-Out configurator above is transmitted with your order and the unit is built to it at no charge. Then set your door size (36″ standard, or 48″ wide +$795.55), match hinge side (right or left) to the swing that clears your prep-room flow, add a lockable door handle (+$125), and finish with lower-door diamond plate ADT priced automatically to your door width ($425 for 36″ · $605 for 48″) — all in the configurator above.

06 Construction & panels

Quick Ship prefabricated modular construction for easy field assembly. Polyurethane foamed-in-place insulation for superior water resistance and the highest possible R-value. Floorless design with durable vinyl screeds standard; optional insulated floor available above. The interior clears the exterior by 8″ in width and depth. Cam-lock panels assemble with two people and no specialty tools.

07 Refrigeration options

The 20×20 ships with a matched two-piece refrigeration system standard. High-ambient upgrades (Level 1 — 80°F ambient through Level 4 — 110°F ambient) are priced live in the Build-It-Out configurator above and added to your cart with the unit. Remote-split builds available. Compressor selection is workflow-dependent:

• Copeland scroll — high door-cycle facilities
• Heatcraft — tropical-climate / high-ambient installs
• R-290 hydrocarbon — low-GWP jurisdictions

08 Installation & lead time

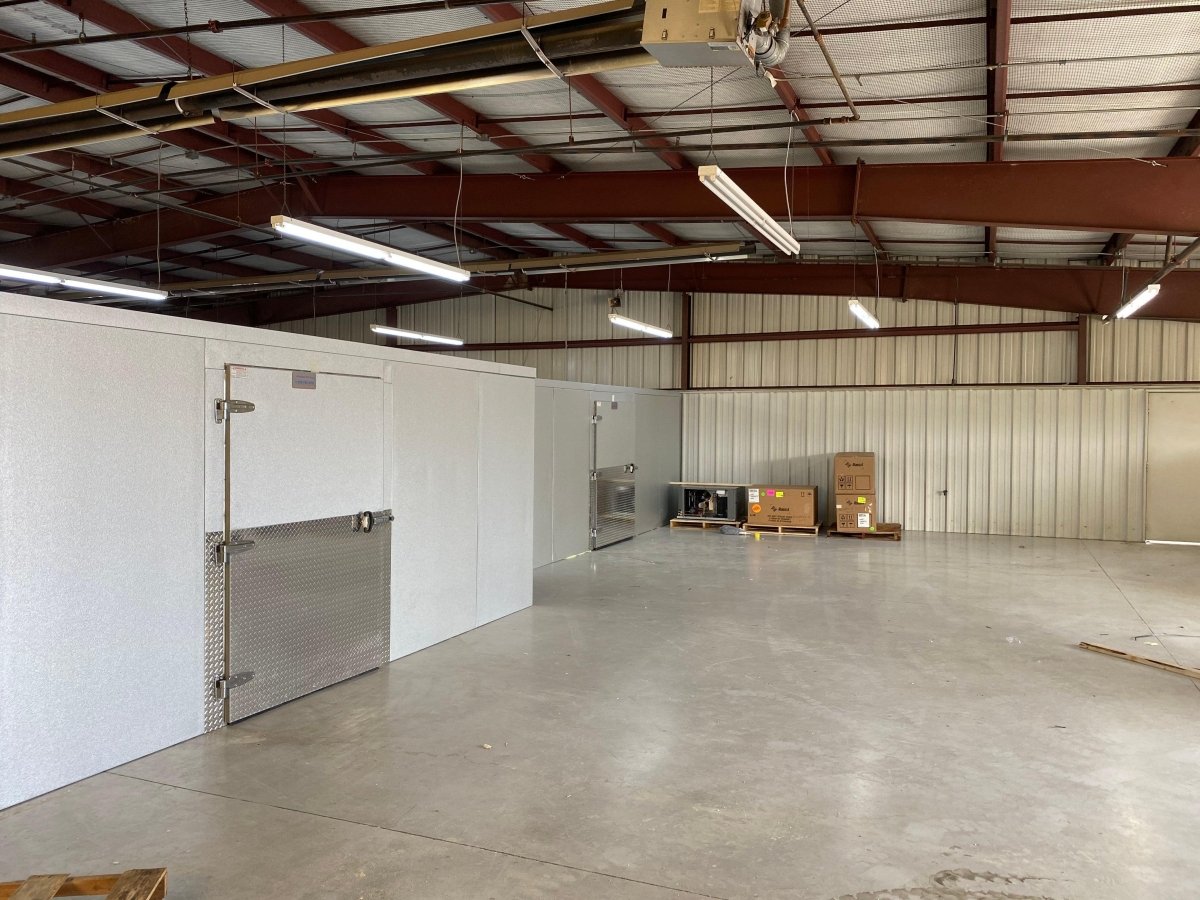

Ships as a flat-pack panel kit on palletized LTL freight from Tennessee — buyer provides forklift or fork-equipped unloading. Standard lead time runs 5–15 business days for in-stock configurations (4–6 weeks for custom builds). Installation is not included unless exclusively stated in writing on your quote. Pre-order site survey: installation guide; regional transit: delivery times by region; in-stock units: ready-to-ship inventory.

09 Compliance & certifications

Certified to NSF, UL, and ASTM E84 Class A flame spread, and compliant with DOE/EPA EISA 2007 and Prop 65. ASTM E84 Class A on the interior face matters under county morgue requirements and state body-storage code. Certificates and cut sheets available on request for AHJ submittals and PO packages.

10 Warranty & returns

Backed by a Limited 15-Year structural panel warranty — full terms in the Warranty Policy (WR-1.0).

11 Financing & procurement

Starts at $26,214.00 factory direct — and through August 15, 2026, code SAVE5 takes 5% off at checkout. Benchmark against the 2026 cost guide.

• 0% financing at checkout — Shop Pay Installments for qualified buyers
• 1% back on every Shop Pay purchase
• Extended financing on orders over $5,000 — apply here
• Section 179 in-year tax treatment — guidance here

Government & institutional buyers: POs accepted — quote packets with full specifications, W-9 and insurance certificates on request. Send to po@mymortuarycooler.com or call 1-888-792-9315. Ships factory-direct to all 48 contiguous states. Regional desks: Southeast · Midwest · Northeast · Southwest · Rocky Mountain · Pacific · Canada.

12 Competitor benchmarks

Compared against MOBI, Mopec, and Mortech equivalents, the 20×20 leads on factory-direct pricing, American manufacturing, faster lead times, and a published Limited 15-Year panel warranty. Full comparisons: MOBI vs AMC · Mopec alternative · Mortuary Mall alternative.

13 Who it's for

• Regional funeral home consolidations
• Mid-size hospital morgues
• County coroner & medical examiner offices
• Crematory holding rooms

Complete the room: racking systems · HD 1000 MAX mortuary lift · body & casket lifts · trays & boards — quoted together, shipped together.

14 FAQ & contact

How many bodies fit in a 20×20 walk-in cooler?

30 to 50 with 4-tier side-loading racks, depending on case mix.

What are the interior dimensions?

19′4″ W × 19′4″ D × 7′0″ H usable — the 4-inch panels reduce each exterior run by 8 inches.

Can I choose the exact door location?

Yes — four placements: corner or off-center, on the front or the side wall, selected in the Build-It-Out configurator and built to your pick at no charge. Door size (36″ or 48″), hinge hand, lockable handle (+$125), diamond plate, floor, ramp, and LED lighting are chosen there too.

What temperature does it maintain?

34–40°F body holding; for long-term storage see our mortuary freezers.

Do you accept purchase orders?

Yes — municipal, county, state, university, and hospital POs accepted; email po@mymortuarycooler.com for quote packets with W-9 and insurance certificates.

Where is it manufactured?

Johnson City, Tennessee. American Mortuary Coolers, family-owned since 2009, A+ rated by the Better Business Bureau.
